P/N: NPN

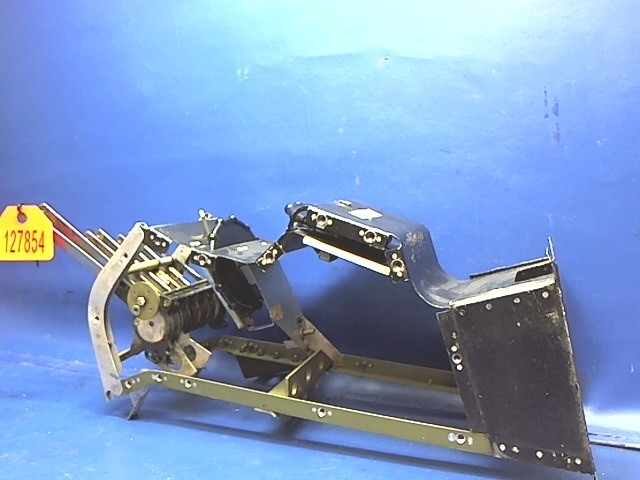

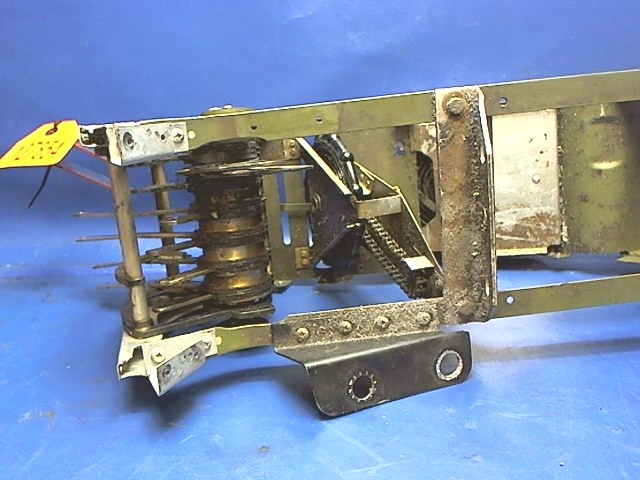

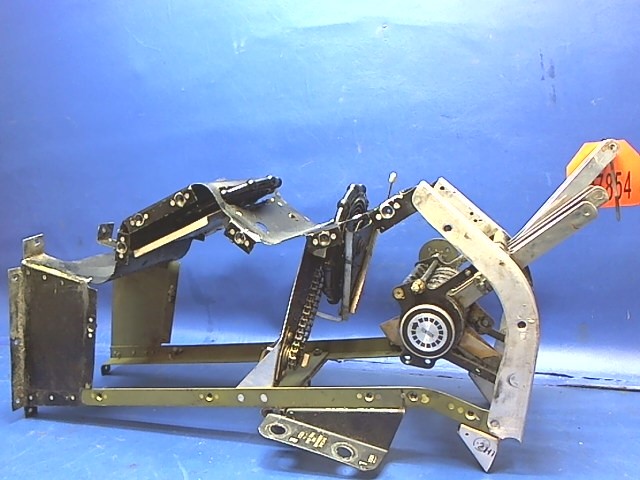

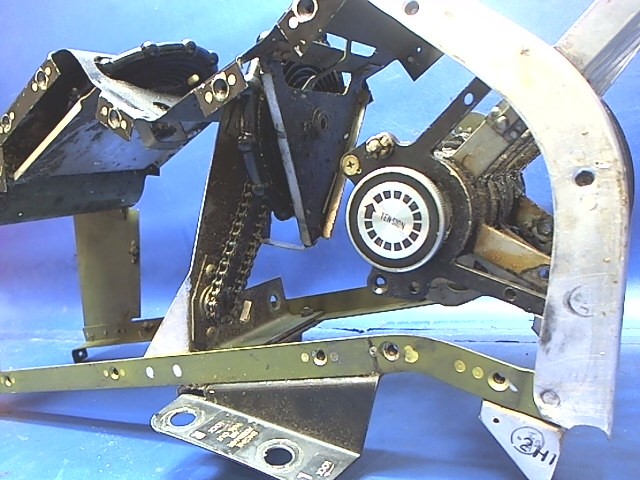

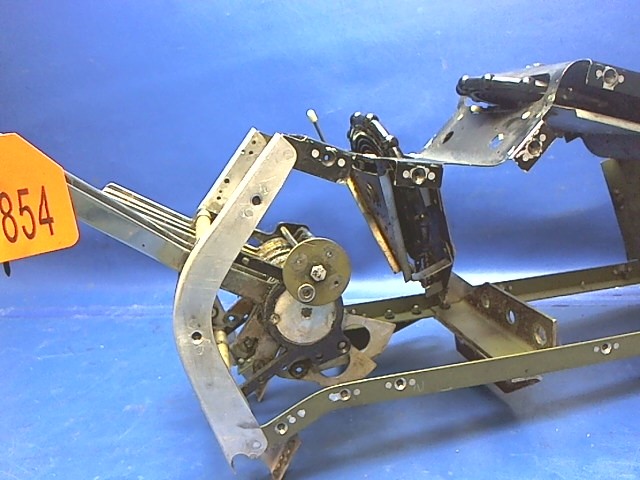

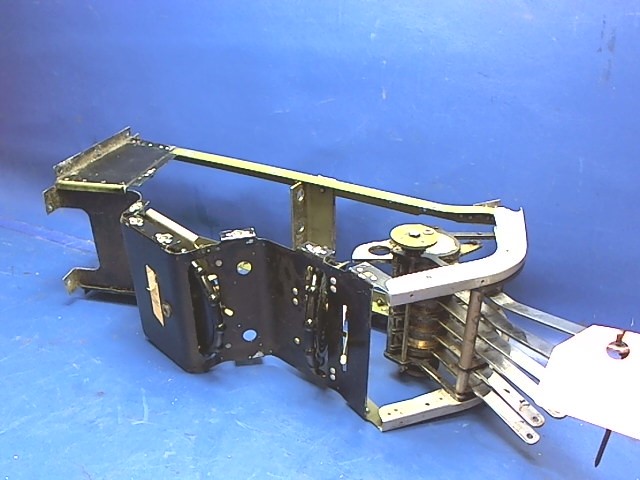

MFR/Title: Cessna - Pedestal Structure - Center Console w/ Engine Quadrant and trim tab wheels

Item from a 1969 Cessna 310N

Alts: 0861106-200 Pedestal Structure Assembly
0861111-1 Angle LH
0861111-2 Angle RH
0861100-21 Panel - Side Lower LH
0861100-22 Panel - Side Lower RH
0861112-13 Bracket - Pedestal Front
0861114-7 Channel - Side Upper LH
0861114-8 Channel - Side Upper RH
0861100-75 Bracket - Rudder Trim Upper
0861100-74 Bracket - Rudder Trim Lower
0861100-68 Bracket - Aileron Trim
0813540-1 Bracket - Pedestal QTY 2
0850667-1 Bracket - Controls Forward
0850667-2 Bracket - Controls Aft
0861149-9 Bracket - Alternate Air Control
0861100-165 Wheel - Aileron Trim
0861100-24 Shaft - WHeel
0861100-64 Indicator Arm - Aileron Trim
0432134-1 Sprocket - Aileron Trim
0861100-63 Indicator Arm - Rudder Trim
0861100-165 Wheel - Rudder Trim
0861100-23 Shaft - Rudder Trim Wheel
0432134-1 Sprocket - Rudder Trim Wheel QTY 2
0860175-8 Pedestal Chain - Upper
0861100-71 Plate
0861100-7 Shaft - Torque Tube
0861113-1 Quadrant Asembly - Engine Control
0861211-2 Mounting Plate
0861221-1 Stud
0861219-1 Retainer
0861218-1 Hub
0861216-2 Spacer
0861216-1 Spacer QTY 2
0861236-7 Lever - LH Throttle
0861212-1 Spacer QTY 4
0861236-8 Lever - RH Throttle
0861202-9 Lever - LH Prop Pitch
0861202-10 Lever - RH Prop Pitch
0861204-11 Lever - LH Mixture
0861204-12 Lever - RH Mixture
0861210-1 Spring
0861209-1 Washer
0861211-1 Mounting Plate
0861208-2 Ajusting Nut - Friction
0861232-1 Rack - Mixture Control QTY 2
0861220-1 Spacer - Mounting Plate QTY 3
0861207-1 Spring QTY 2
0861206-1 Ratchet Stop QTY 2
0861237-1 Cam QTY 2
0861226-1 Spacer - Throttle
0861213-1 Friction Disc QTY 12
0861104-1 Spacer QTY 2
0861104-2 Spacer QTY 2
0861104-3 Spacer QTY 2

  ItemID: 127854
This item has not been priced.

For assistance, contact a sales representative.
