P/N: MPN

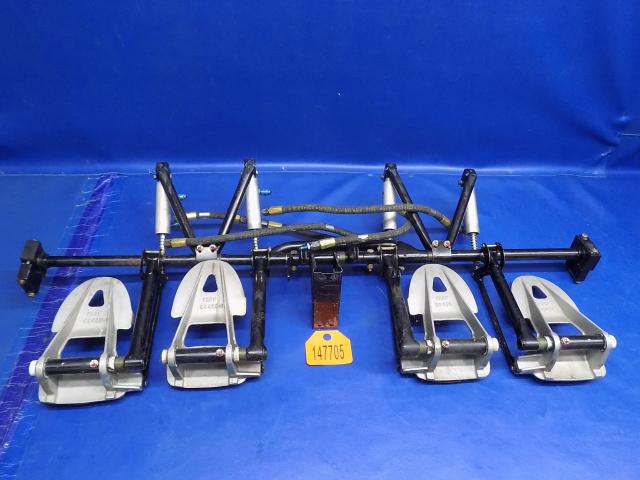

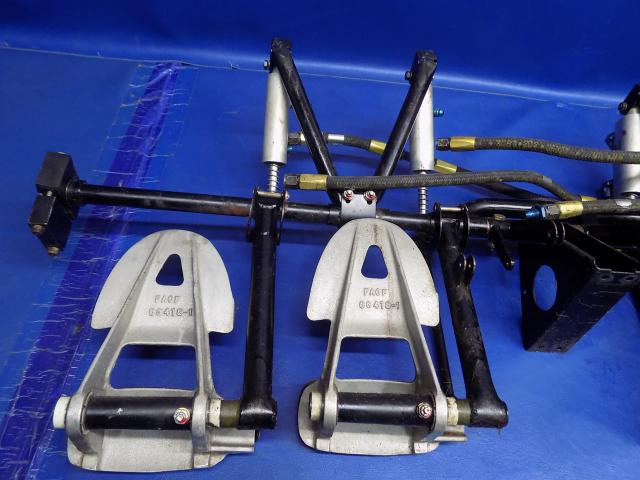

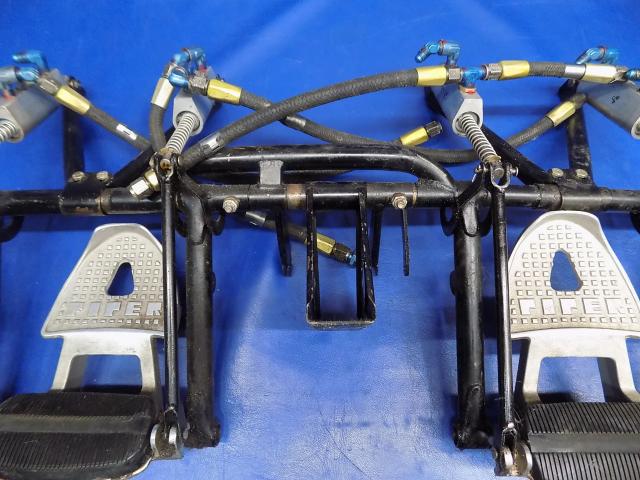

MFR/Title: Piper - DUAL TOE BRAKES (RSTB/LSTB)

Item from a 1984 Piper PA28-181 Archer

Alts: DRAWING: 63476 DUAL TOE BRAKE LINE INSTALLATION

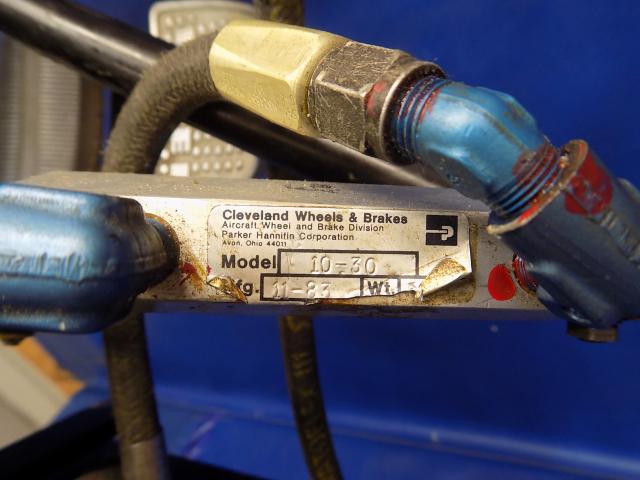

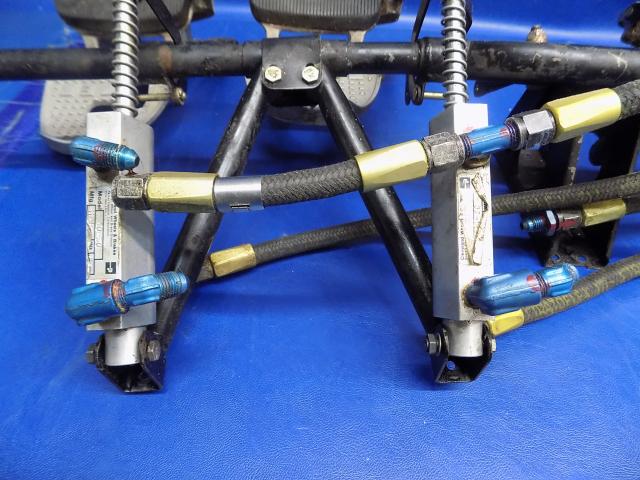

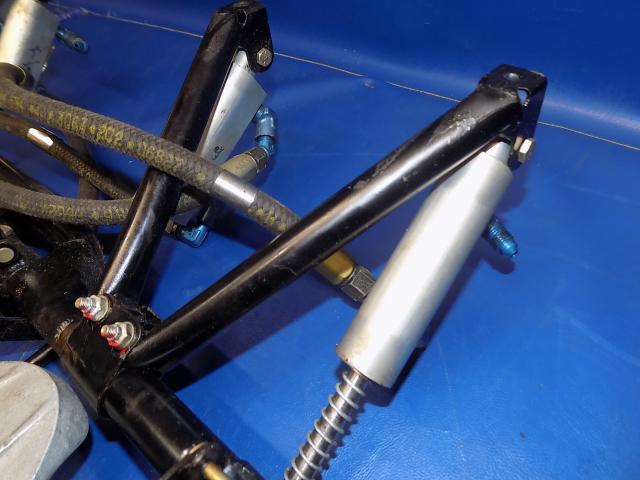

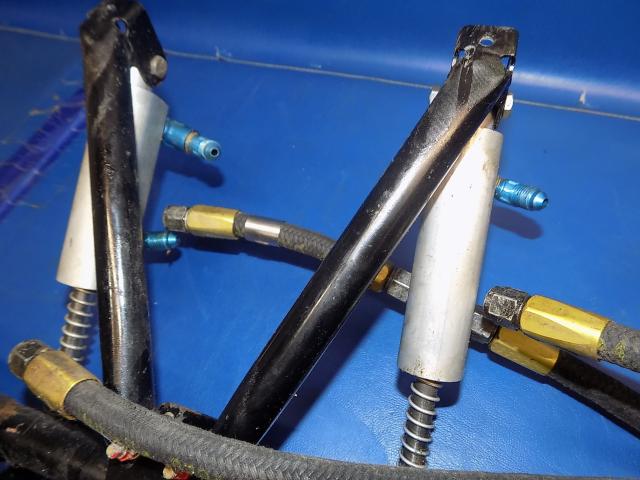

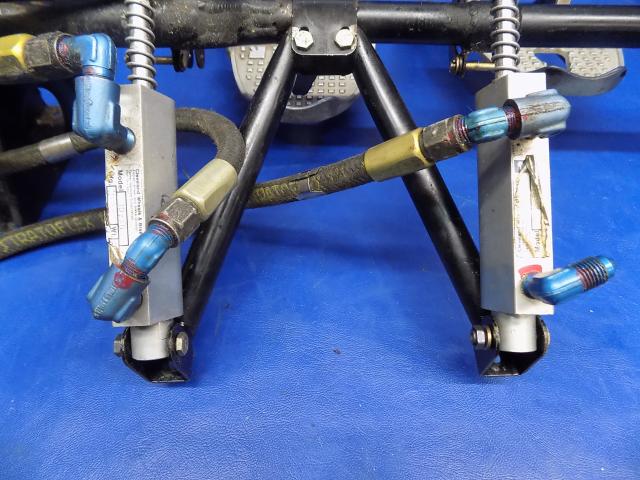

455 968 CYLINDER ASSEMBLY - Master (10-30) Cleveland x4 455968 455-968
63901-09 HOSE ASSEMBLY - Flexible (x1) (Missing 1) 63901-009
63901-21 HOSE ASSEMBLY - Flexible (x2) 63901-021
63901-22 HOSE ASSEMBLY - Flexible (x1) 639001-022
63594-00 CLIP - Spring, left outboard pedal (MISSING) 63594-000
63594-01 CLIP - Spring, right outboard pedal (MISSING) 63594-001
63464-00 BRACE ASSEMBLY - Toe brake x 2 63464-000
63468-00 BRACKET - Toe brake x2 63468-000
63469-00 ARM - Toe brake x1 63469-000
63469-01 ARM - Toe brake x3 63469-001
63470-00 ARM - Toe brake x4 63470-000
79430-00 CLEVIS ASSEMBLY - Toe brake (non-adjustable) x4 79430-000
63478-00 SPACER - Toe brake x4 63478-000

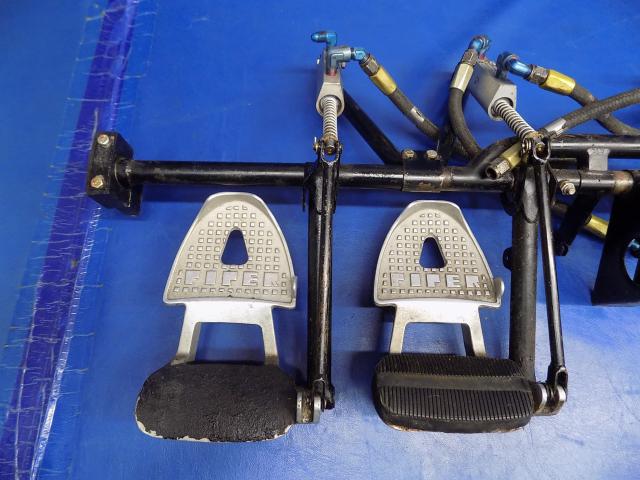

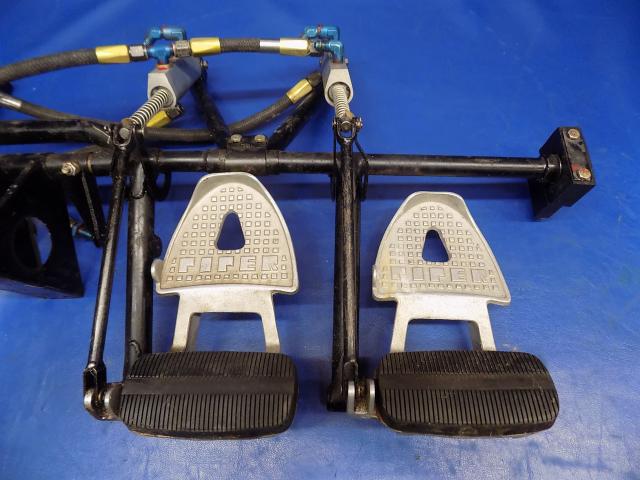

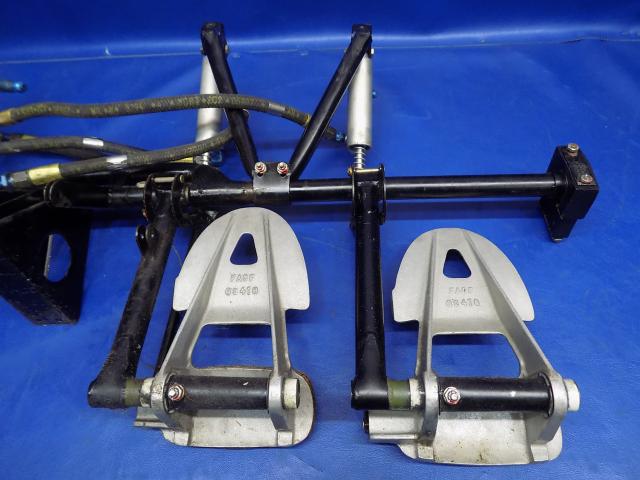

63485-00 PEDAL - Toe brake, left inboard x1 63485-000
63485-02 PEDAL - Toe brake, left outboard x1 63485-002
63485-01 PEDAL - Toe brake, right inboard x1 63485-001
63485-03 PEDAL - Toe brake, right outboard x1 63485-003
62867-02 * PAD - Brake pedal x4 62867-002
453 714 BEARING - Brake pedal (PS10065-37) x8 453715 453-714
424 175 PIN - Flat head (MS20392-2C13) 424-175 424175 (MISSING)
424 181 PIN - Flat head (MS20392-2C25) x4 424181 424-181
424 184 PIN - Flat head (MS20392-2C31) x4 424184 424-184
424 189 PIN - Flat head (MS20392-2C39) x4 424189 424-189
458 894 ELBOW - (MS20822-4D) x3 458894 458-897
458 891 ELBOW - (MS20823-4D) x4 458891 458-891
488 499 TEE - (MS20825-4D) 488499 488-499
491 050 UNION - (AN815-4D) 491-050 491050
458 904 ELBOW - (AN914-1D) 458904 458-904

63459-19 RUDDER PEDAL - Complete x1 63459-019
63420-08 * PEDAL AND BAR x1 63420-008
63419-00 * PEDAL AND BAR x1 63419-000
63458-05 *PEDAL AND BAR x 1 63458-005
66661-00 ARM - Connector x1 66661-000
402 314 BOLT - (AN174-13A) x2 402-314 402314
407 585 WASHER - (AN960-416) x2 407585 407-585
404 836 NUT - (MS20364-428C) x2 404836 404-836
581 330 PLUG - Rudder pedal (WW-9) (MISSING) 581330 581-330
581 332 PLUG - Rudder pedal (WW-7) 581332 581-332
63456-00 BLOCK - Rudder bar support, bottom x2 63456-000
65050-00 BLOCK - Rudder bar support, top x2 65050-000
62833-17 WASHER - Rudder bar support x2 62833-017
65003-03 BUSHING - Rudder bar support x4 65003-003
63455-00 PLATE - Rudder bar support x3 (3 missing) 65003-000
63451-00 SUPPORT ASSEMBLY - Rudder bar x1 63451-000
400 438 BOLT - (AN3-4A) 400438 400-438 (MISSING)
400 456 BOLT - (AN3-31A) x4 400456 400-456
404 887 NUT - (MS20365-1032C)x4 404887 404-887

  ItemID: 147705
This item has not been priced.

For assistance, contact a sales representative.
